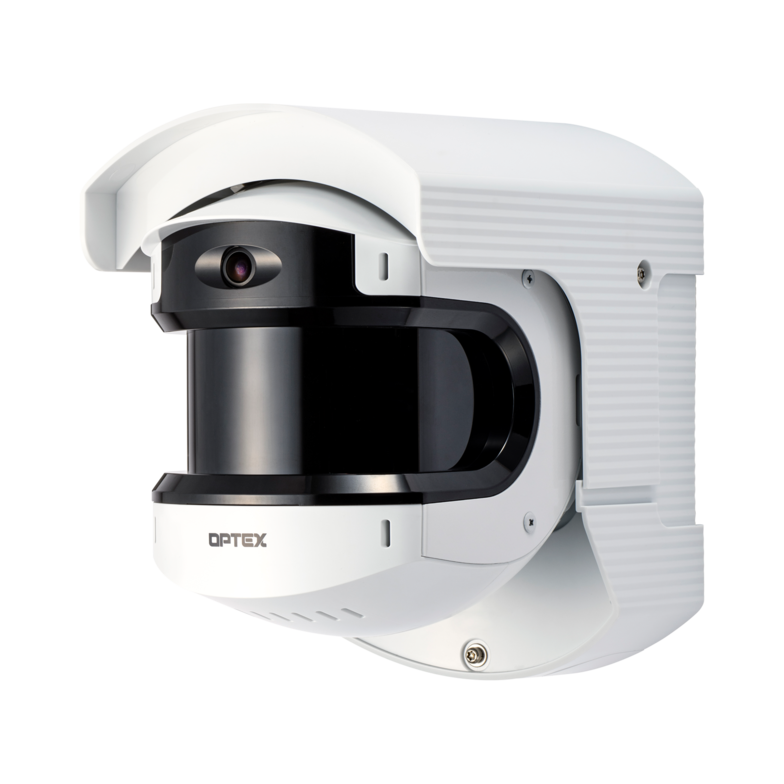

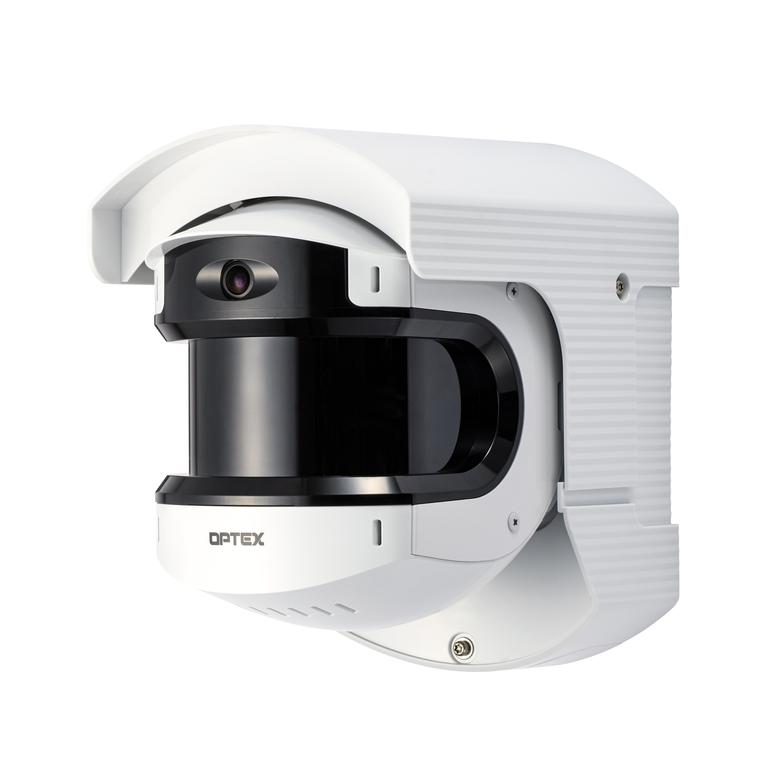

REDSCAN Pro Advanced LiDAR Sensor Series

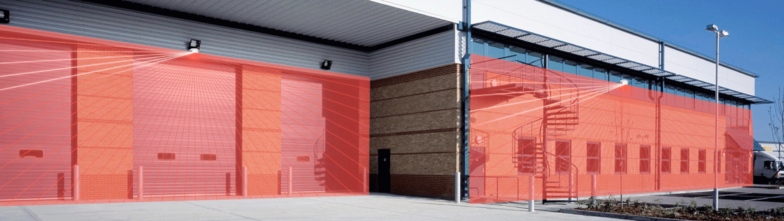

Extremely reliable and versatile, the REDSCAN PRO security sensors utilize LiDAR technology to create a high resolution virtual laser wall or plane up to 100m long, ideal to protect perimeters, buildings, roofs and assets.

Featuring onboard sensing analytics, the LiDAR will detect accurately, even in changing weather and lighting conditions, the size, speed and distance of the moving or loitering objects and track them to the exact X and Y coordinates.
  • Long range outdoor and indoor advanced LiDAR series.
  • Ideal solution for critical security sites, providing accurate detection of intruders and moving objects.
Achieve More With Just One Sensor
The REDSCAN Pro provides up to 330 ft, 190 degree detection (with RLS-50100V) allowing protection of wide areas, with just one sensor. The detection area can be divided in up to 8 independent zones, and for each of them the object target size, sensitivity and output can be customized. It gives great flexibility to adapt the settings depending on the zone's location and level of threat. For instance, one detection zone can be set to detect people, while another is set to detect vehicles, or one zone can be set as pre-warning and another as immediate security alert. The REDSCAN PRO's detection range and versatility enables to achieve what is usually done by multiple sensors.

In addition the sensor has a built-in camera which can record on the device, alarm events and save both logs and pre-post event photos and videos, to be used as additional support to review what triggered the alarm and make any adjustments necessary to the settings.
Intelligent and Weather Resistant Device

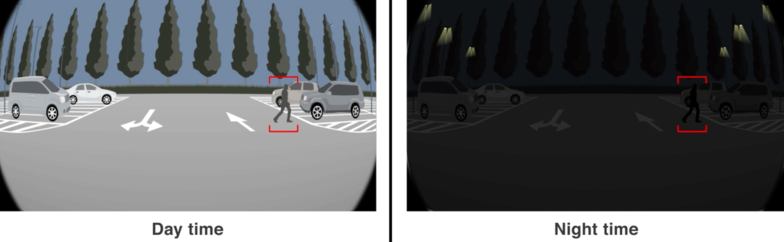

With onboard analytics, REDSCAN Pro can analyze the size, the speed and the distance of the moving objects, providing point detection by tracking the X & Y coordinates of the moving objects. A further advantage of LiDAR technology is that the detection performance is stable at any time without being affected by variable lighting or temperature. RLS-50100V provides a high detection resolution of 0.125 degrees.
REDSCAN Pro features environmental resistance function to reduce false alarms due to harsh environments like fog or snow. An Auto Area Adjustment function allows Redscan Pro to continuously adjust the detection area to take into consideration changes happening on ground such as accumulation of snow or leaves. The sensor can operate from -20 to +60 degrees and when using a heated lens can extend its operating temperature to -40 degree.
Connectivity and Interoperability
The REDSCAN Pro LiDAR is an ONVIF profile S compliant sensor allowing it to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices. The video stream of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To assure a secure network communication, the REDSCAN Pro is compliant with HTTPS, SNMPv3, IEEE802.1X protocols.
Easy Installation and Maintenance

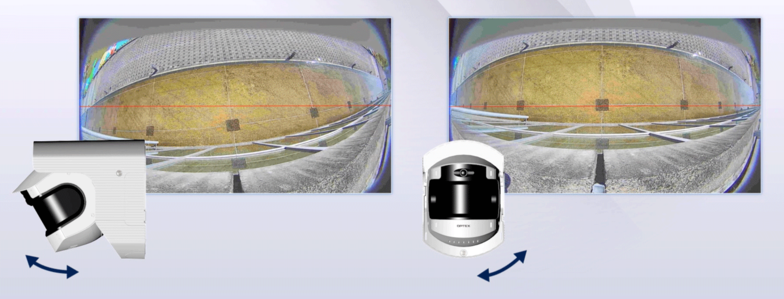

REDSCAN Pro is equipped with built-in assistance camera which simplifies installation and walk test. Through a laser line overlay on the camera view, it provides a very useful visual guidance on where the detection area is on scene, allowing to adjust the angle of detection of the sensor. Additionally, the REDSCAN Pro features a built-in adjustment bracket within its housing to allow a tilt of -5 degree to 95 degree and a side adjustment is -/+ 5 degree. Horizontal, vertical and tilted mounting options can all be achieved without the need of an additional bracket.

The configuration settings is done via web browser which allows an easy remote access. The settings can be copied from one device to another, providing they are the same model (from one REDSCAN Pro unit to another).
Installation Guide

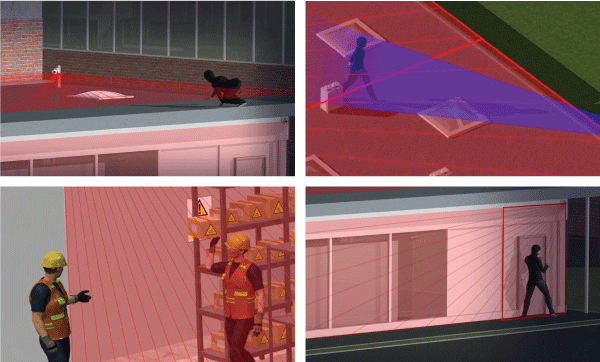

Applications
High security buildings, perimeter, approach, roof / ceiling, VIP residence, garden, garage, driveway, critical assets, and more.

REDSCAN Pro LiDAR Series is ideal for:

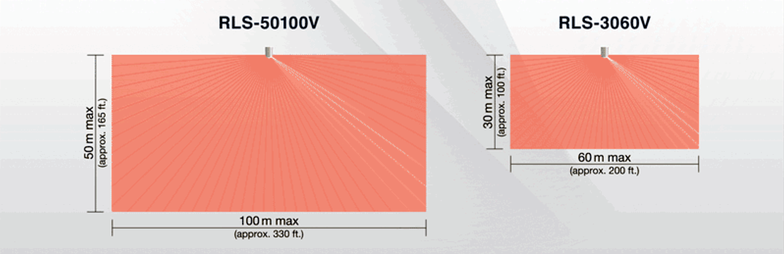

Models

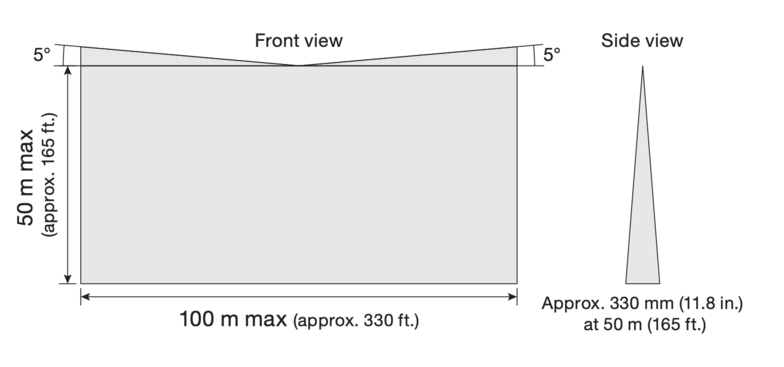

RLS-50100V
- 50 x 100 m (approx. 165 x 330 ft.)
- Very high detection resolution: 0.125º
- Indoor / outdoor model
- Expanded mode: up to 265 ft radius
- 8 independent detection zones
- Rectangular detection area
- Log function with camera
- Setting by web browser

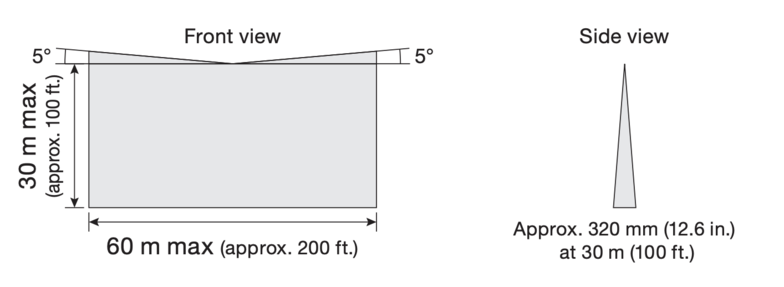

RLS-3060V
- 30 x 60 m (approx. 100 x 200 ft.)
- High detection resolution: 0.25º
- Indoor / outdoor model
- Expanded mode: up to 165 ft radius
- 8 independent detection zones
- Rectangular detection area
- Log function with camera
- Setting by web browser
The REDSCAN Pro LiDARs are ONVIF profile S compliant sensors allowing them to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices.

Mounting Accessories

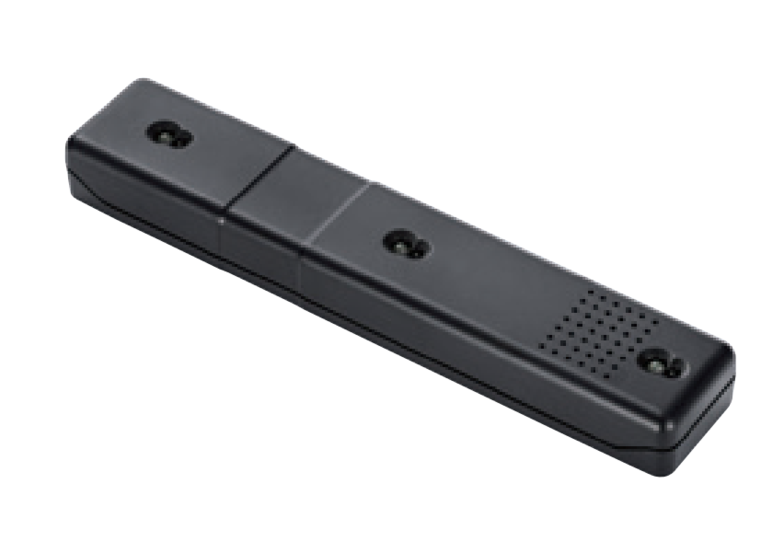

LAC-1
Laser Area Checker for all RLS series.

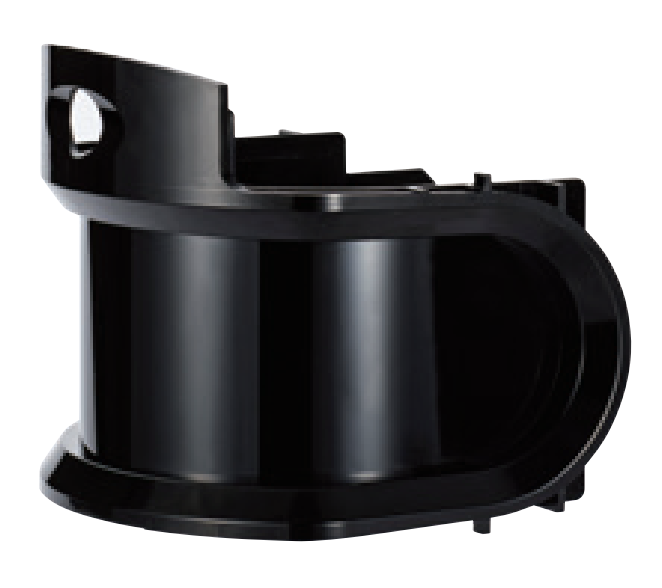

RLS-LWV
Replacement Window for RLS-3060V and RLS-50100V
RLS-LWVH
Replacement Window with heater unit for RLS-3060V and RLS-50100V
