REDSCAN Lite Indoor 2D Short-range LiDAR Sensor
The REDSCAN Lite delivers high-performance LiDAR detection in a compact, lightweight form that easily mounts to walls, ceilings, or brackets. Covering up to 33 × 33 ft, it tracks object size, speed, and position to protect sensitive indoor zones. With tool-less angle adjustment, PoE or DC power, and visual alignment via the optional laser tool, setup is quick and precise, backed by auto-learning and a simple web interface for consistent, reliable operation. Built to make advanced indoor protection easier than ever, it provides OPTEX-quality performance in a streamlined design.
- Compact LiDAR with simplified setup and flexible power for fast, precise indoor detection.
- Ideal for data centers, retail spaces, warehouses, skylights, and interior glass partitions.
Flexible Coverage for Sensitive Indoor Spaces

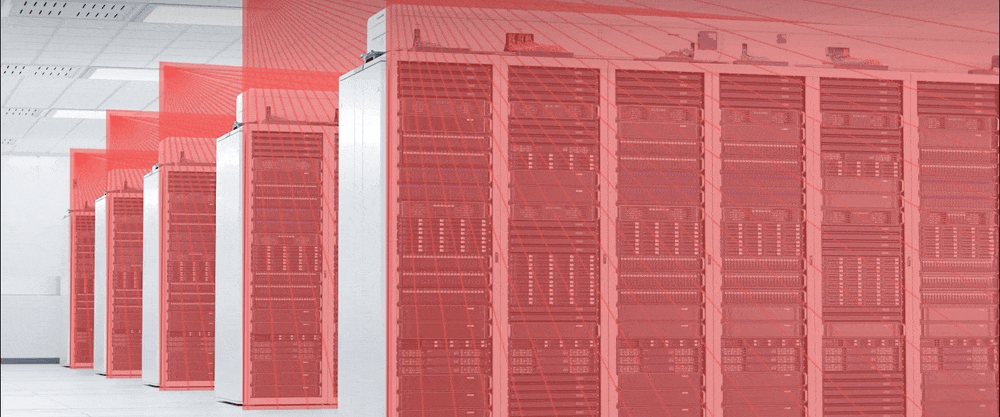

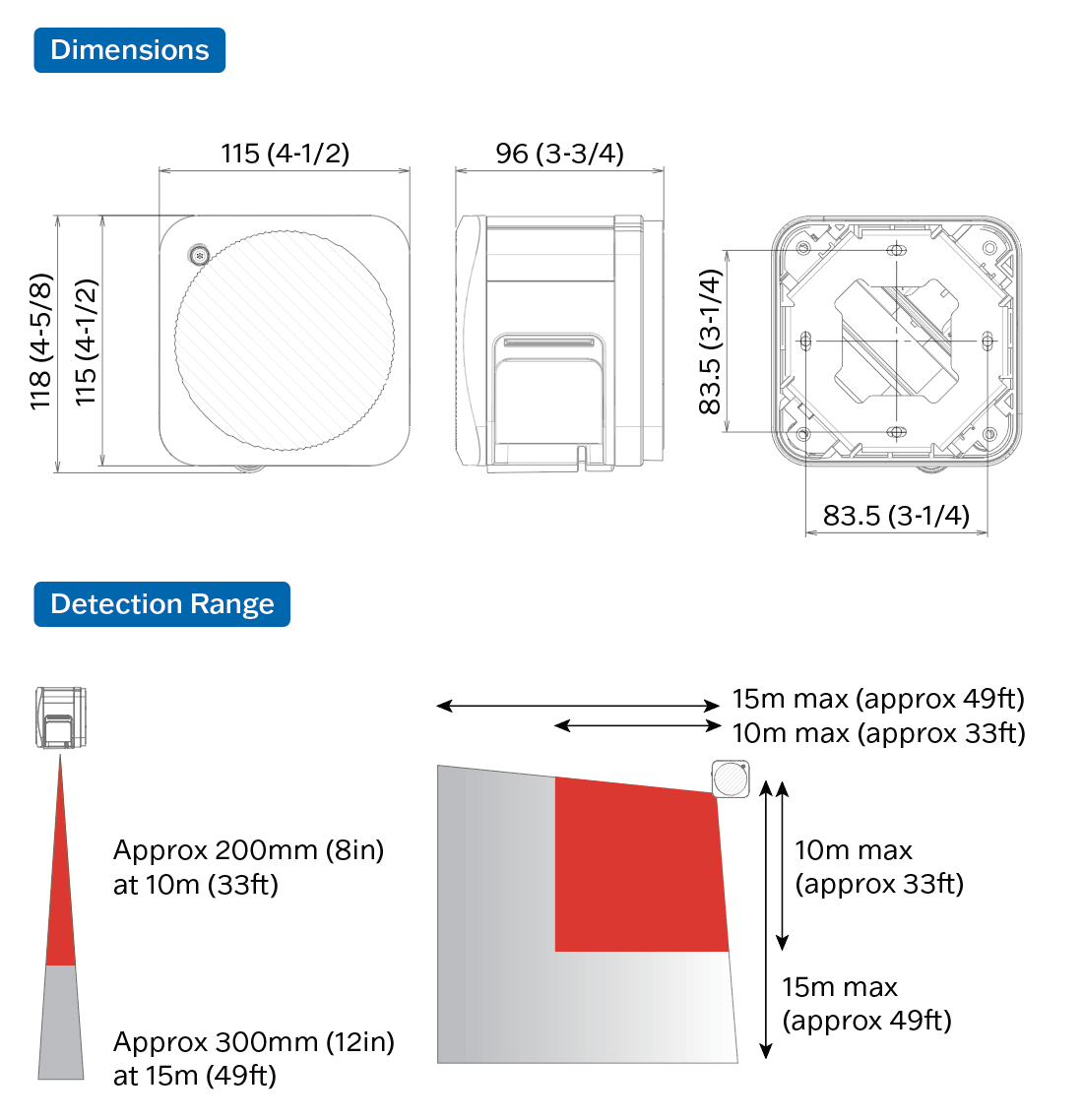

The REDSCAN Lite delivers up to 33 × 33 ft of 2D LiDAR detection with a 95° field of view, providing precise, real-time coverage for sensitive areas such as data centers, retail displays, and restricted corridors. It detects object size, speed, and position, creating a virtual wall or plane that instantly identifies unauthorized access or movement.
With advanced tracking capabilities, the REDSCAN Lite adapts to different layouts and risk levels, whether monitoring an aisle, glass partition, or skylight. Its ability to distinguish between object types and movements ensures reliable detection performance across diverse indoor zones.

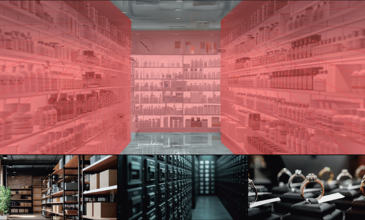

Targeted Detection for Shelving, Skylights, and Racks

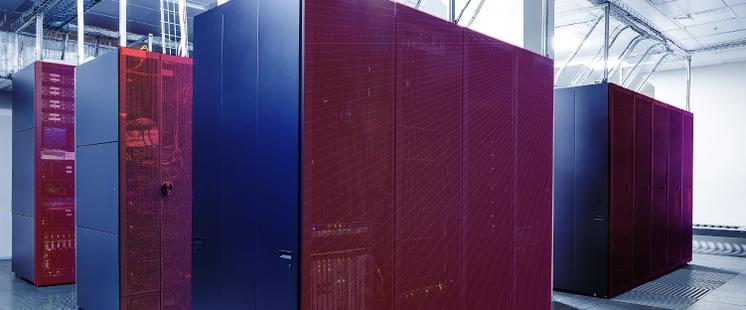

Mounted on ceilings, walls, or brackets, the REDSCAN Lite secures assets and overhead areas with exceptional accuracy. Its 33 × 33 ft coverage area can protect server cages, shelving, or skylights, detecting movement or intrusion with consistent precision. Whether it’s creating a virtual barrier around sensitive equipment or discreetly monitoring open spaces from above, the REDSCAN Lite provides dependable, continuous coverage tailored to each environment.
The sensor’s built-in feedback indicators and detection history log support quick fine-tuning and maintenance. Installers can visualize performance in real time, ensuring that each detection zone functions optimally without unnecessary adjustments or trial-and-error alignment. These features make ongoing calibration and verification simple, helping maintain long-term reliability across all monitored areas.
Intelligent Operation for Consistent Performance

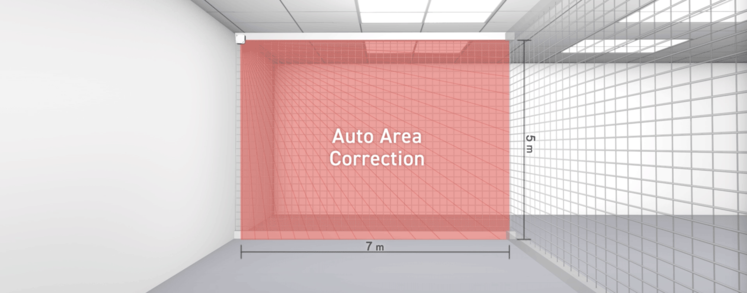

Equipped with Auto Area Learning, the REDSCAN Lite self-calibrates the detection field at startup to eliminate overspill and reduce false alarms. This feature ensures stable performance even when lighting, layout, or environmental factors change. Its Dynamic Analysis function continuously interprets detection data, enhancing accuracy and minimizing maintenance over time. Combined with its intuitive web interface, the REDSCAN Lite offers dependable protection that remains finely tuned to its environment with minimal intervention.
Effortless Installation and Adjustment

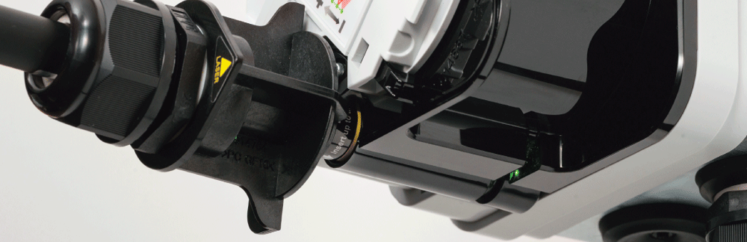

The REDSCAN Lite is engineered for simple, fast deployment. It features tool-less horizontal or vertical angle adjustment (±3°) and visual laser alignment using the optional RLS-LAT tool. Multiple mounting options, including wall, ceiling, and angled brackets, make it adaptable to nearly any indoor location.
Configuration is handled through a clean, browser-based interface, allowing quick setup without a PC connection. With selectable PoE or 12–24 V DC input and a compact design suited for tight spaces, the REDSCAN Lite makes professional-grade indoor detection more accessible than ever.
Installation Guide
Applications
Server cages, data halls, glass partitions, skylights, retail displays, inventory shelving, storage rooms, corridors, restricted access zones, and more.
REDSCAN Lite Indoor LiDAR Sensor is ideal for:
Model Information

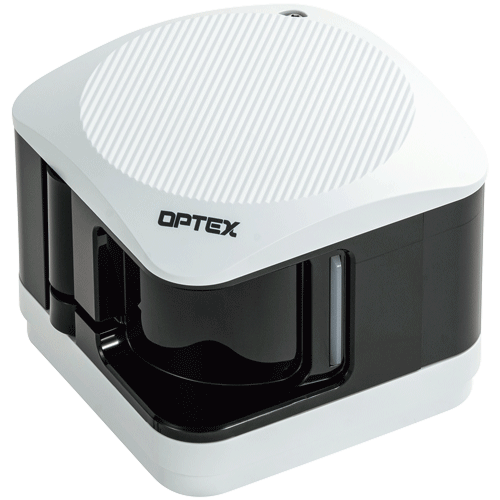

RLS-1010L
Compact indoor LiDAR sensor with 33 × 33 ft, 95° detection area for precise object tracking and reliable intrusion alerts.
- Delivers accurate 2D LiDAR scanning that measures object size, speed, and position to ensure dependable detection in sensitive indoor zones.
- Offers flexible mounting for walls, ceilings, or brackets, with tool-less ±3° adjustment and optional laser alignment for quick, precise setup.
- Supports both PoE and 12–24 V DC power input through a single interface, simplifying installation in a variety of environments.
- Utilizes Auto Area Learning, Dynamic Analysis, and built-in LED feedback to optimize performance, reduce false alarms, and streamline maintenance.
Optional Accessories
LAC-1
Laser Area Checker for all RLS series.

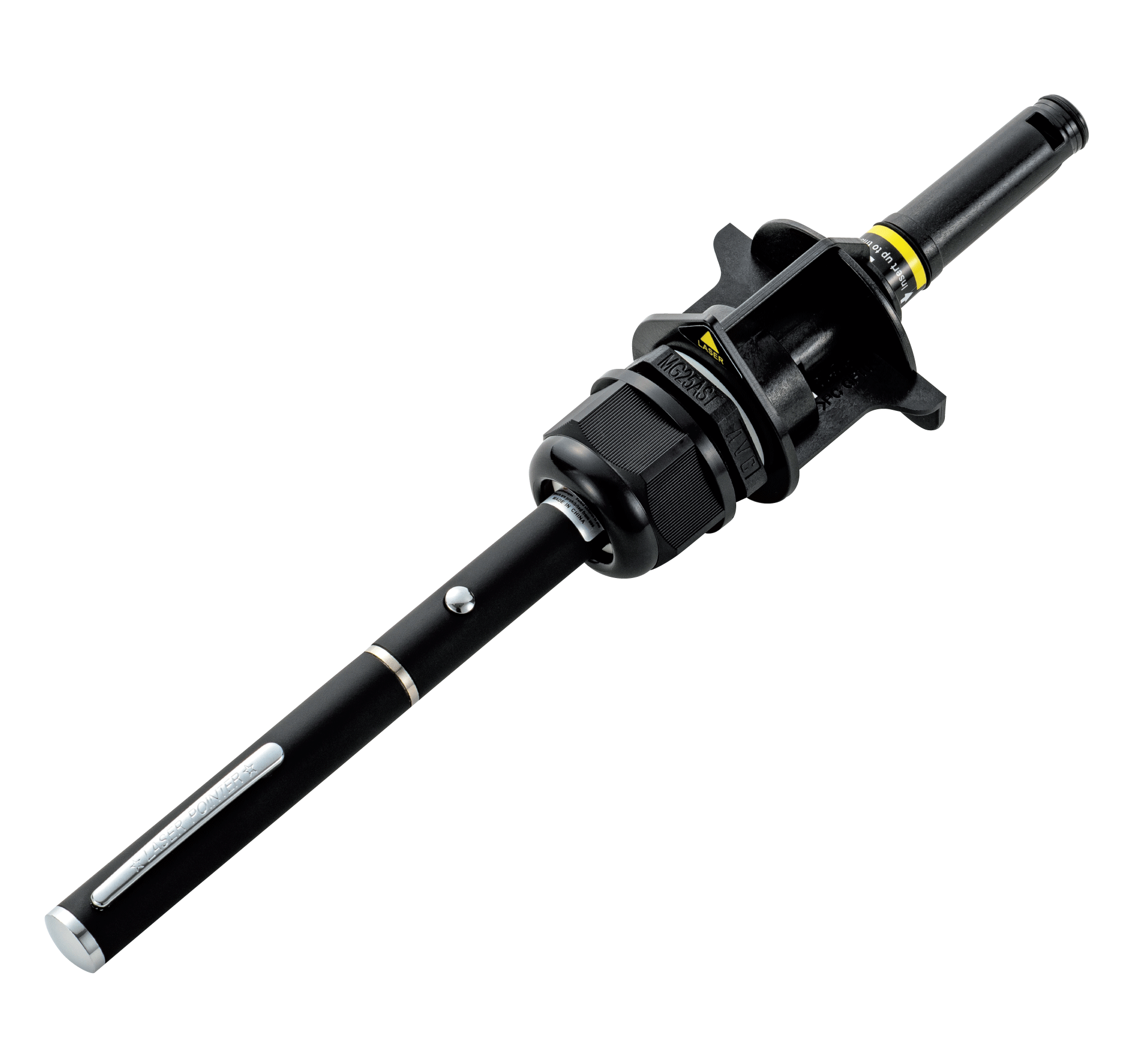

RLS-LAT
Laser Alignment Tool for the REDSCAN Lite.

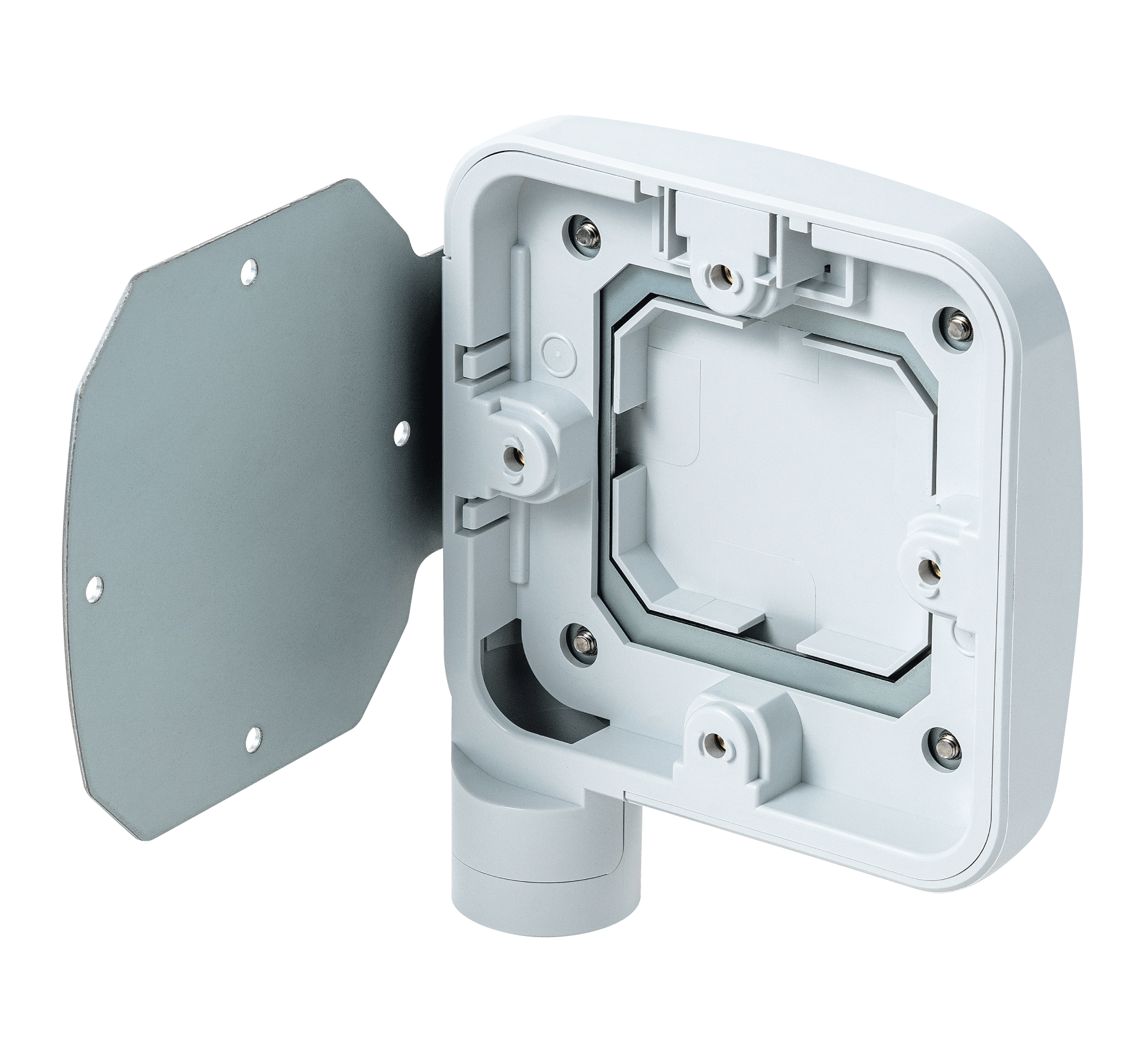

RLS-LBL
L-Mount Bracket for the REDSCAN Lite.
Contact Us
Americas:
EMEA:
Coming Soon!

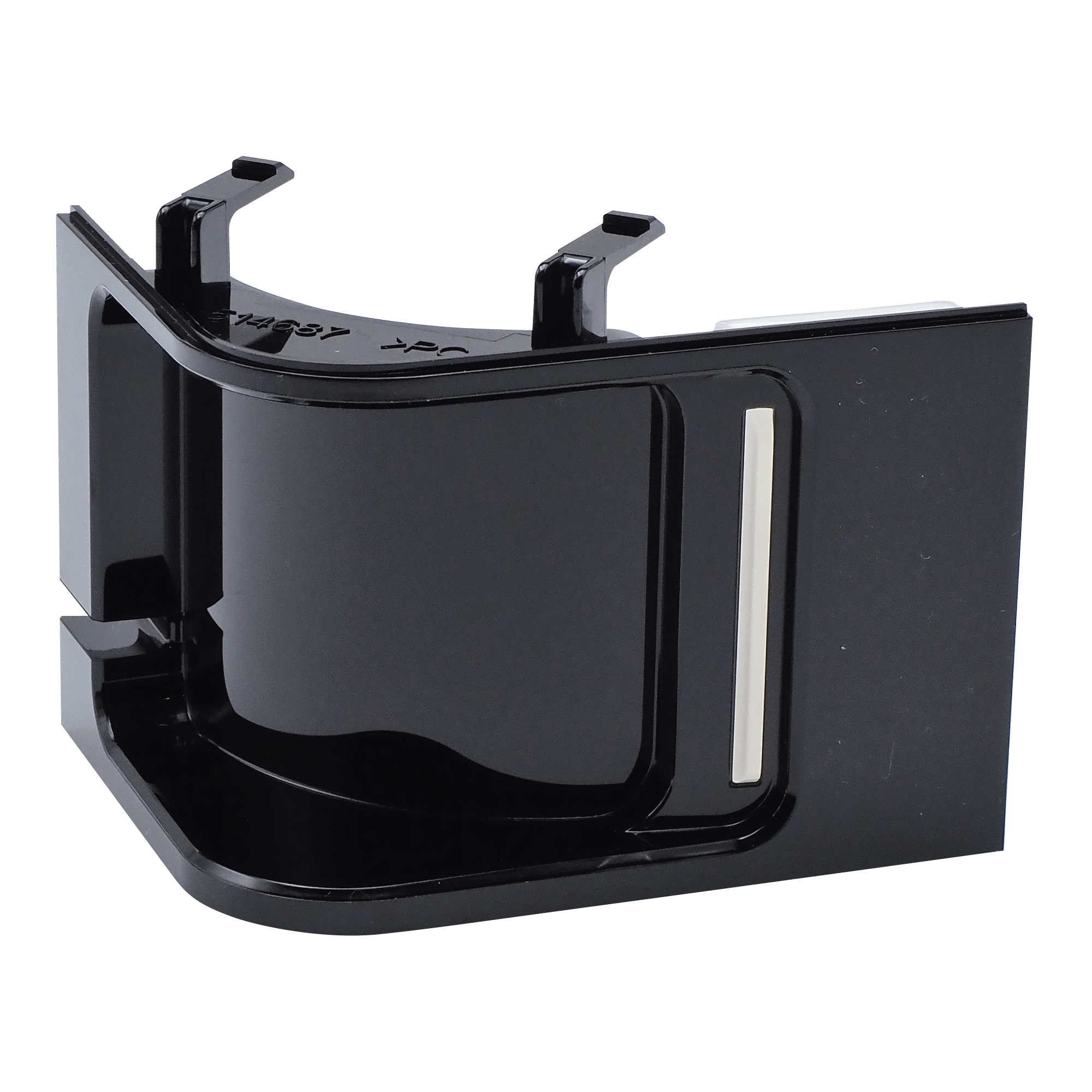

RLS-LWL
Laser Window for the REDSCAN Lite.
