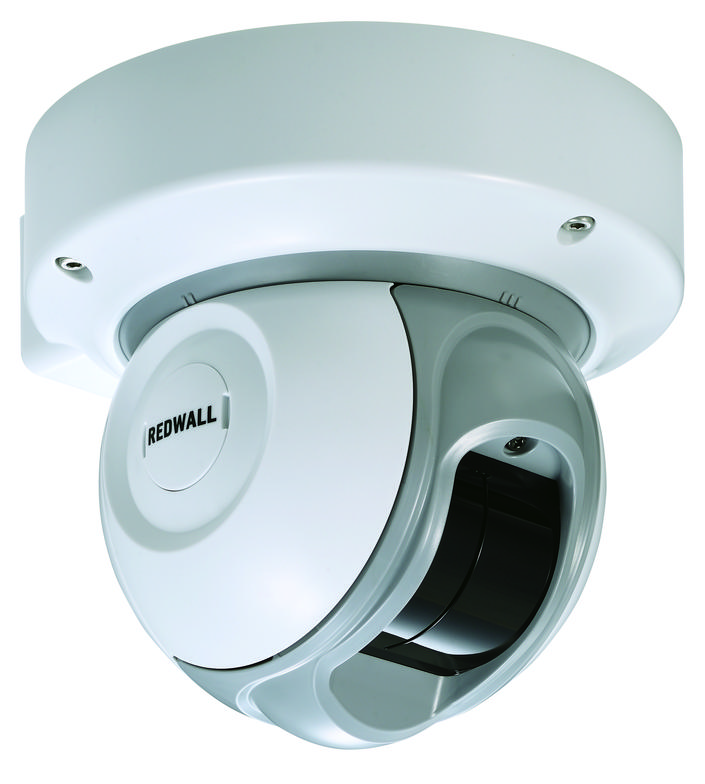

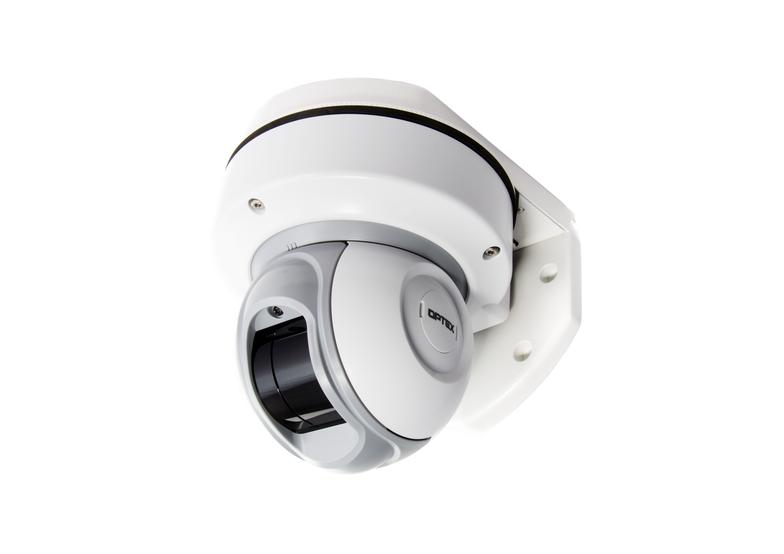

* NEW RLS-2020 Short Range Laser Scan Detector
Redscan RLS-2020 series is a next generation short range laser scan detector that provides accurate motion detection for indoor and outdoor security applications. It expands the current award-winning REDSCAN laser sensor product series with the same proven benefits of its ‘larger’ companions but is lighter, more compact and has a range of additional control and power features similar to those enjoyed by IP Dome cameras.

Vertical Laser Detection Walls
Horizontal Laser Detection Walls
Art Galleries
Real Estate Property Management
Ceiling Detection
Data Centers
Small Object Throwing Detection
Innovative Compact Design-  Suitable for design-centric applications

Flexible Mounting Options- Its multi-angle adjustment and mounting options are scalable across a range of security applications providing flexibility and ease of installation

High Speed and Resolution Detection- Provides pin-point detection of small objects in indoor and outdoor applications complementing camera driven motion detection

Improved Utility Software- Streamlined for easy and flexible settings.  It also comes with multiple security detection modes for enhanced motion detection.  Can be used as an analog or IP device

IP Integrated-  Can be used asan analog or IP device.  It is PoE enabled requiring only 6 watts of power and can be integrated with popular VMS, NVR's and PSIM.

Elevate IP Video Surveillance and Detection-  Use the RLS-2020 to trigger cameras and motion based events that work in the dark and in tough lighting conditions challenging to video driven motion detection
Models
RLS-2020I
Indoor use only
- 20m x20m (65ft x 65ft) 95 degree detection area
- Vertical and Horizontal detection areas
- Multi-angle Adjustment Shell Structure (MASS)
- Automatic area setting function (no need to measure the field of view)
- Advanced area setting (1 pattern)
- 4 adjustable detection areas on IP connection
- Total 3 outputs can be assigned for analog connection
- Anti-rotation, Anti-masking, Tamper (Selectable)
- Compatible with Power over Ethernet
- Paintable housing
- UL Listed
RLS-2020S
Indoor and Outdoor

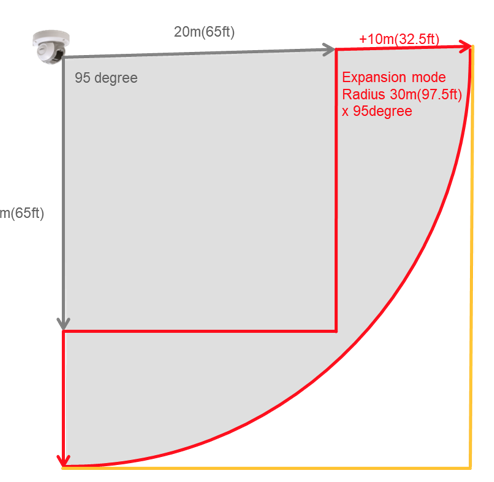

- *NEW Expansion Mode: When using “Detection range expansion” 30 x 30m, (97.5 x 97.5 ft.) 95 degree, Fan-shaped area (requires firmware 3.0 or later)
- In addition to the features of the RLS-2020I,
- Indoor and outdoor use
- Indoor high resolution mode
- Indoor throw-in mode
- Advanced area setting (4 pattern)
- Area selection
- Environmental disqualification circuit
Anti-rotation, Anti-masking, Soiling, Trouble, Tamper, DQ output (Selectable)
- UL Listed


Contact Us
Americas
Contact Us
EMEA
Click Here for Data Sheet
Click Here For The RLS2020i Press Release
Click Here For The RLS2020S Press Release
Because the RLS2020’s design is similar to a mini dome camera, Optex offers a variety of camera based mounting accessories:

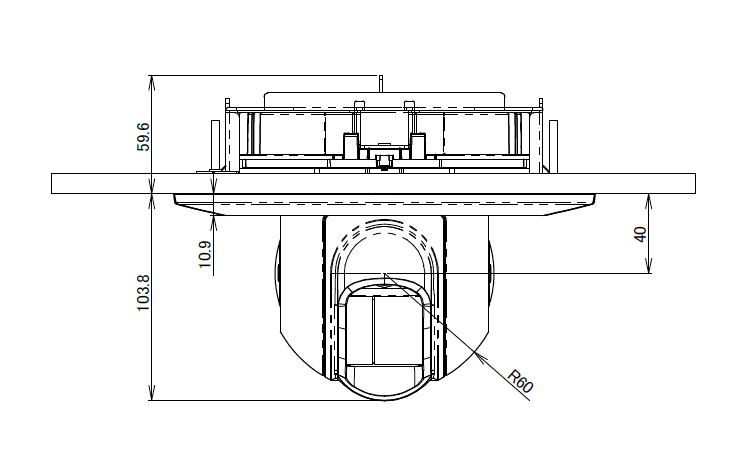

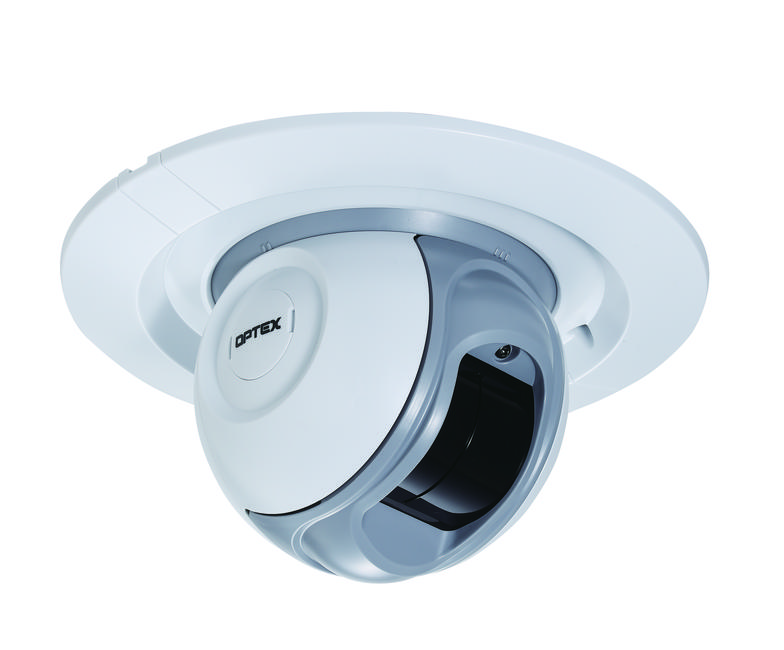

RLS-RB- Ceiling Recess Mount

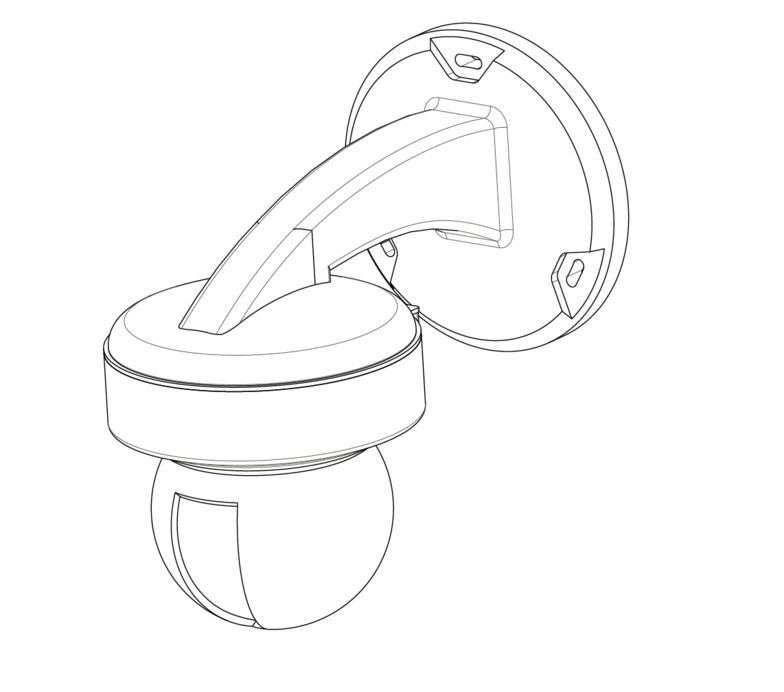

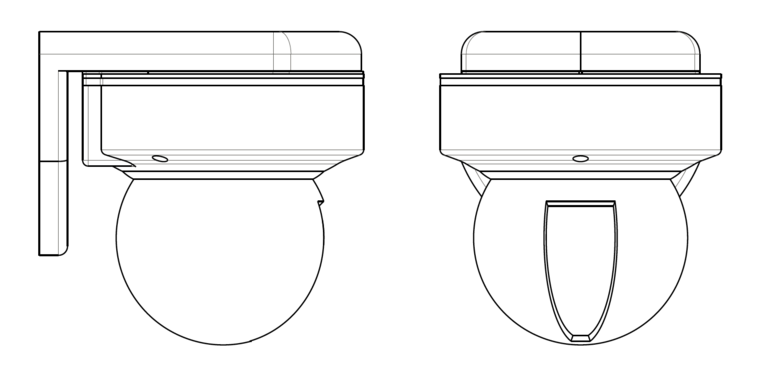

2020WMA8- 8 inch Wall Mount

2020WMA- 12 inch Wall Mount

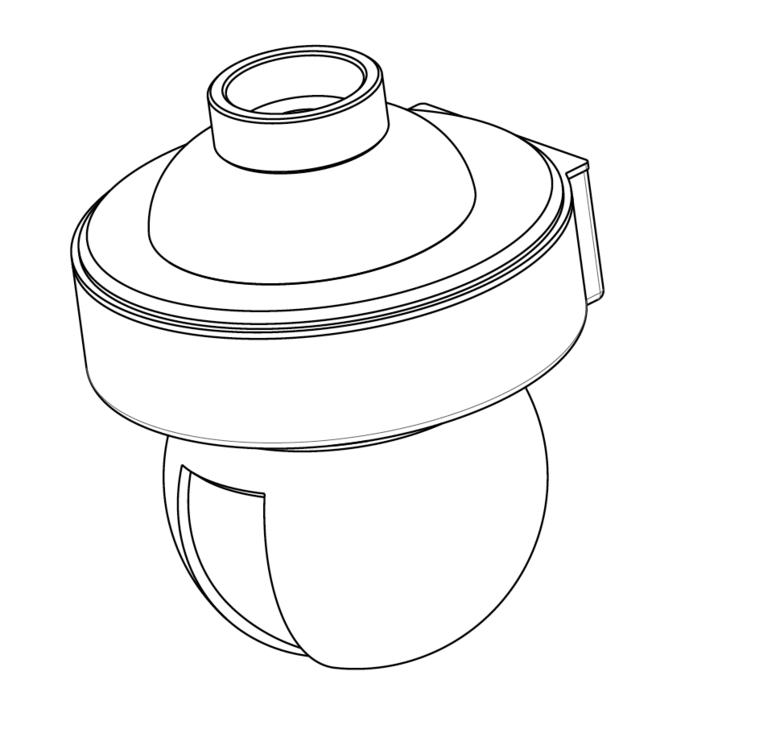

2020PDMA- Pendant Mount (Americas)

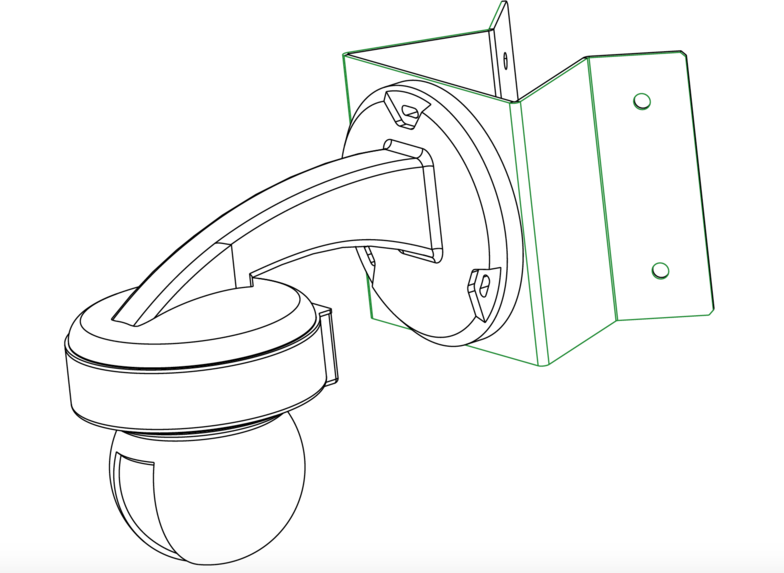

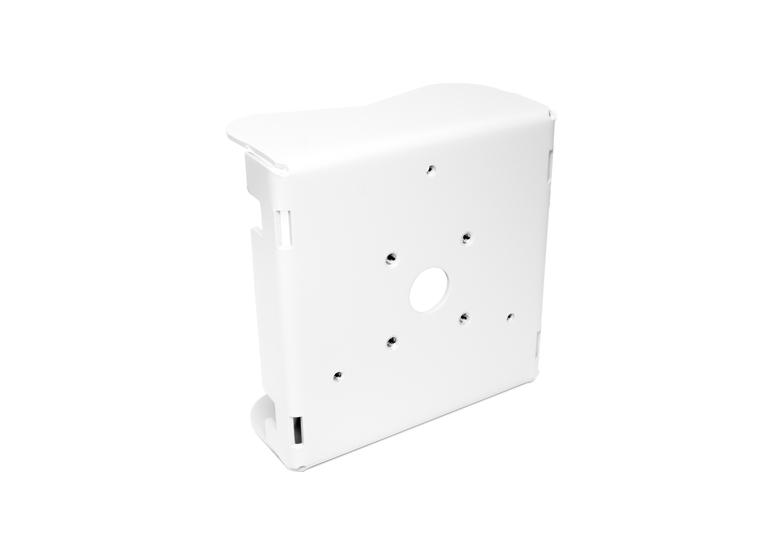

2020CMB- Corner Mount
(For direct mount or with 2020WMA)

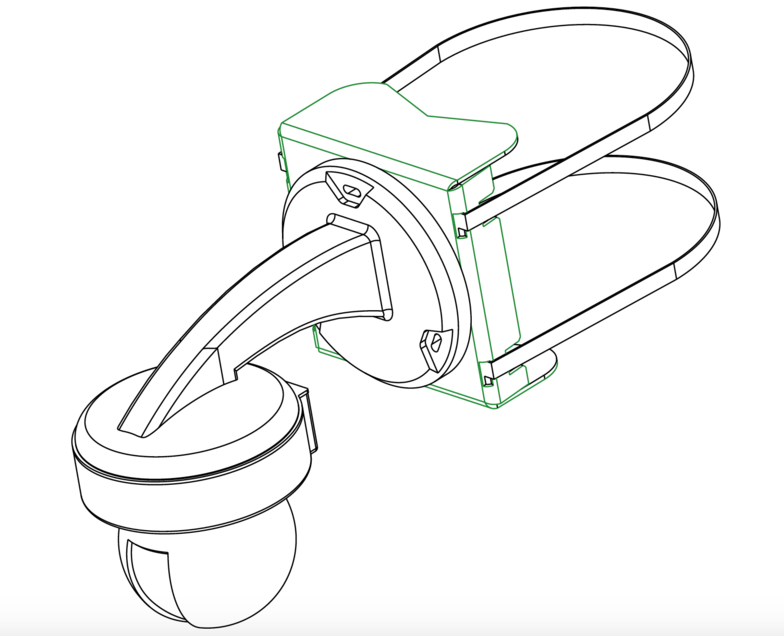

2020PMLK- Pole Mount
(Used with 2020WMA)

-  Proven Indoor Asset Protection and Loss Prevention Solution
-  Effective Outdoor Perimeter Security Protection

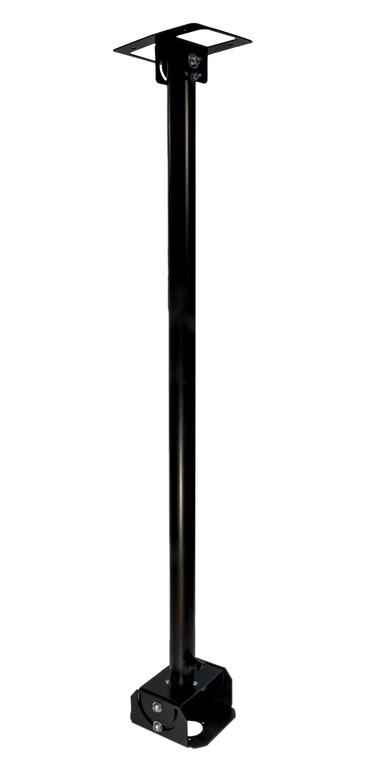

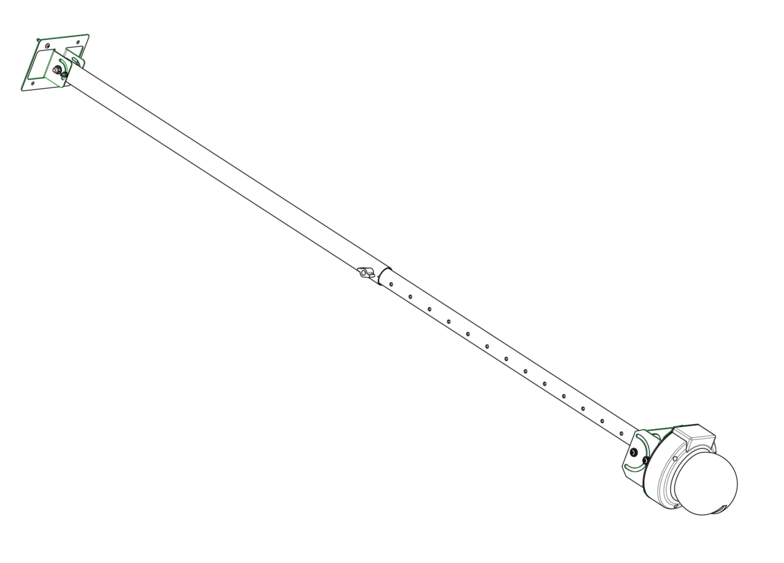

2020ANGX- Indoor Angle Adjustment Arm (Indoor Only)
965mm (32 inch) - 1.57m (62 inch) adjustment range

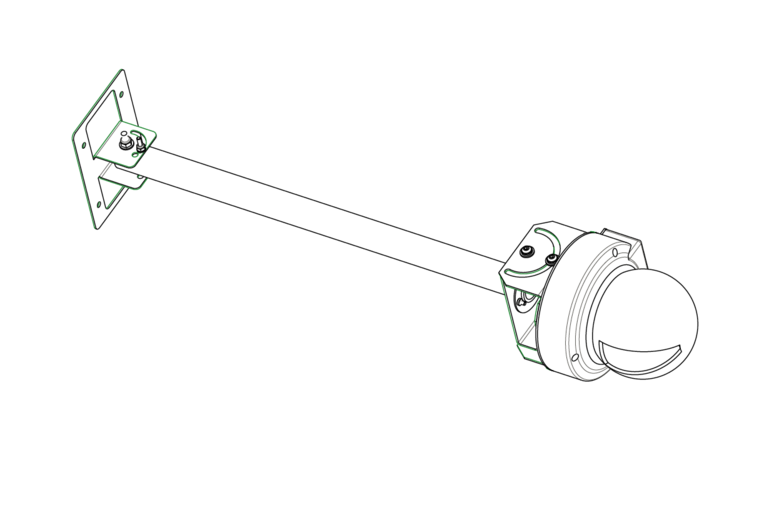

2020ANGS- Indoor Angle Adjustment Arm (Indoor Only)
610mm (24 inch) pole

Click here for CAD file
Click here for product line art PDF
Click here for product manual
Click here for CAD file
Click here for product line art PDF
Click here for CAD file
Click here for product line art PDF
Click here for CAD file
Click here for product line art PDF
Click here for CAD file
Click here for product line art PDF
Click here for CAD file
Click here for product line art PDF
Click here for CAD file
Click here for product line art PDF
Click here for CAD file
Click here for product line art PDF
Click Here for Data Sheet
Click here for product manual
Click here for product manual
Click here for product manual
Click here for product manual
Click here for product manual
Click here for product manual
Click here for product manual
2020PDME- Pendant Mount (EMEA)

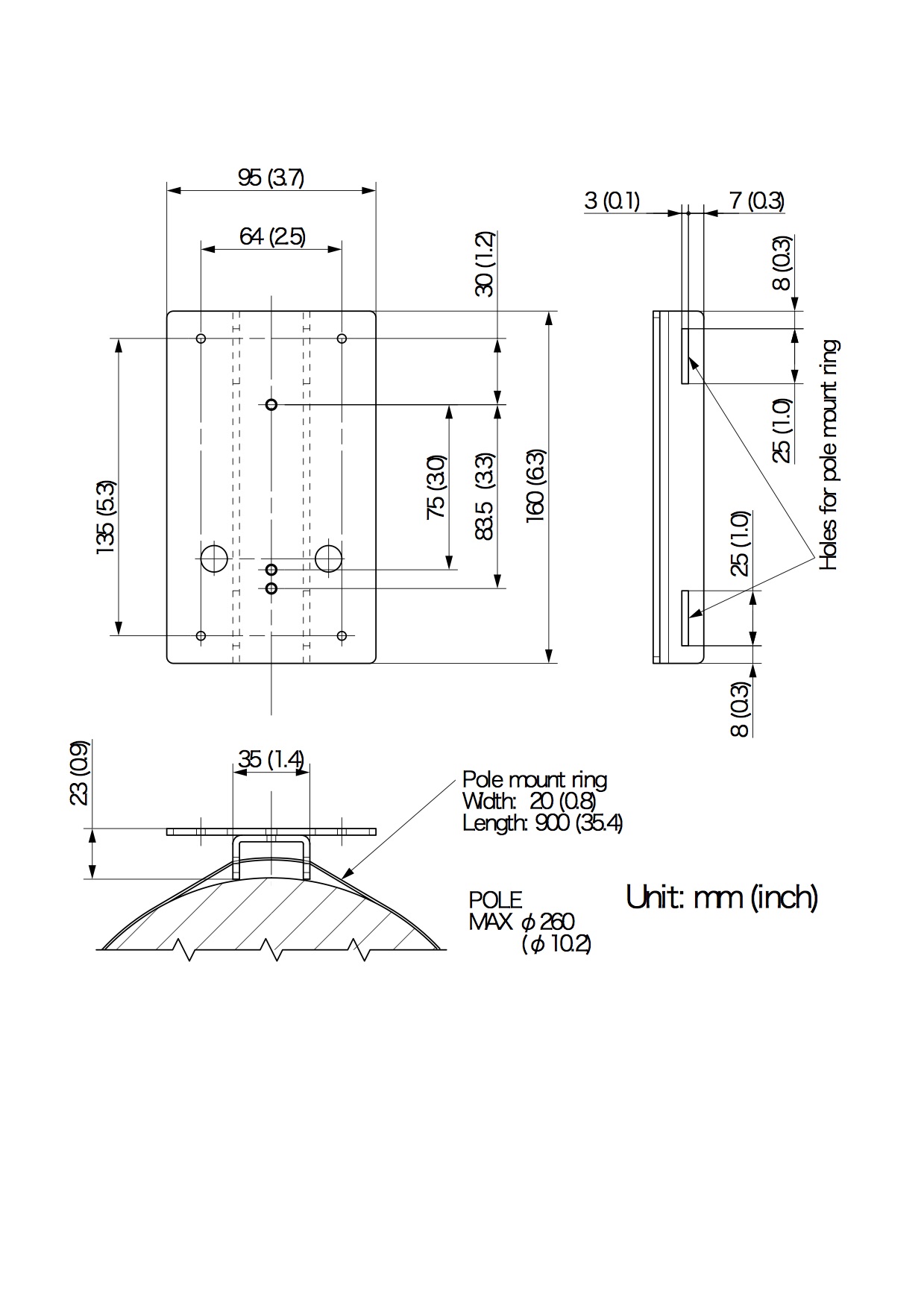

RLS-PB- Direct-To-Pole Mount

Click here for product line art JPG

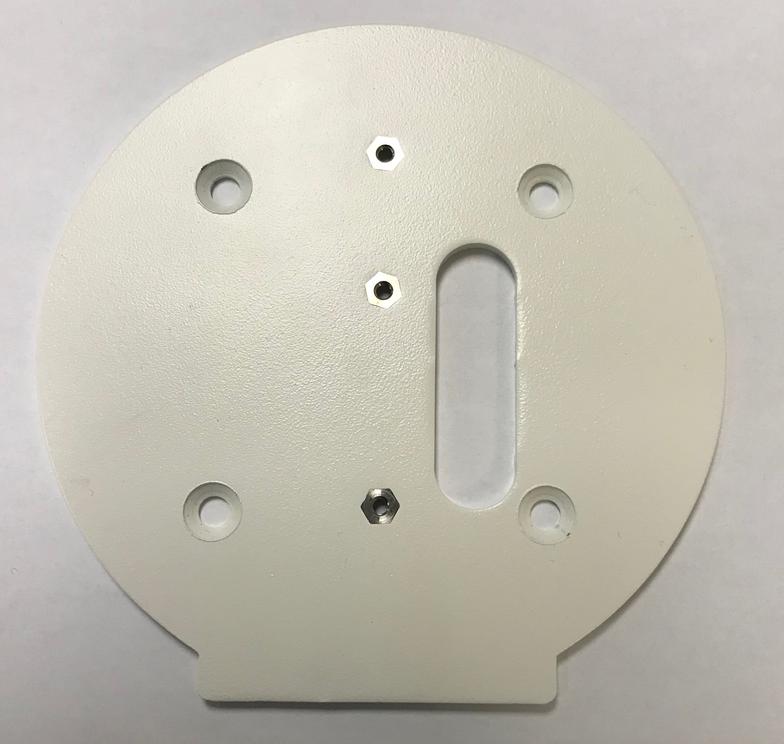

2020PLT Wall Plate
(for uneven, brick and cement surfaces)

Click here for CAD File
Click here for product line art PDF
Click here for product manual
Redscan RLS-2020 Product Concept
Application Solutions
RLS-2020 Rooftop Applications
RLS-2020 Indoor Ceiling Applications
Indoor/Outdoor Skylight Protection
Indoor/Outdoor Glass Wall Protection
Indoor Ceiling Protection
Rooftop Protection
2020MAB Multi-Angle Adjustment Wall Ceiling Mount
Click here for product line art PDF
Click here for product manual
* Includes 2020PLT Wall Plate
**Make sure RLS2020S unit wiring holes are facing down on the 2020MAB for outdoor use.
***Do not use back hole for wiring outdoors.  Contact your local Optex representatives for more details.
*NEW Boundary Expansion Mode
(RLS-2020S only)

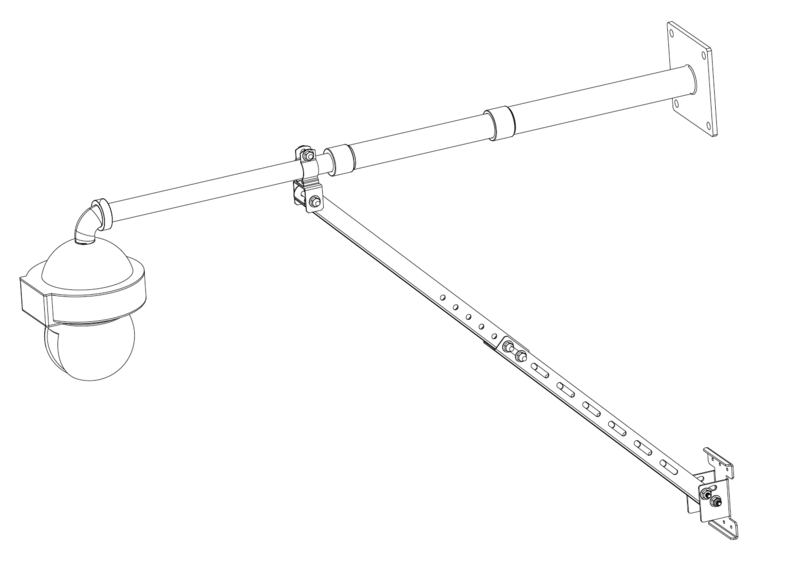

2020WMAD-Adjustable Extension Wall/Roof Mount 15”-37” with extension brace.
Click here for product line art PDF
Click here for product manual
