Redscan-mini-Pro

Compact yet powerful, the REDSCAN mini-Pro uses advanced LiDAR to create a customizable virtual wall or plane up to 65ft, expandable to 100ft, ideal for protecting rooftops, facades, gates, corridors, and restricted areas.

With intelligent analytics and optional built-in camera verification, it detects the size, speed, and position of moving or loitering objects in real time, tracking them with pinpoint X and Y accuracy even in darkness or harsh conditions.

Compact indoor and outdoor LiDAR series with advanced analytics.

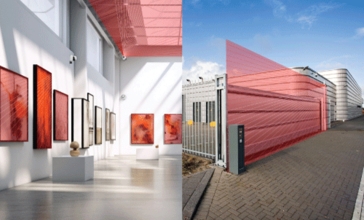

Ideal for assets, rooftops, facades, and restricted zones with precise intrusion detection.

Adaptable Detection for Complex Spaces

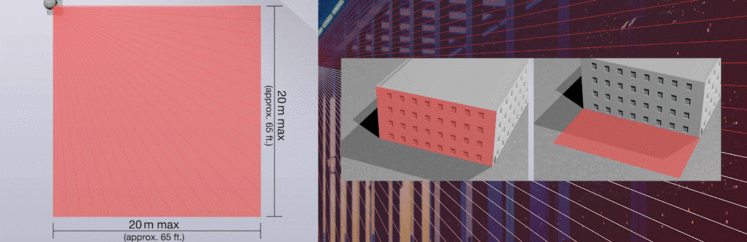

The REDSCAN mini-Pro provides up to 100 ft, 95 degree detection, delivering reliable protection of rooftops, facades, corridors, and restricted areas with a single unit. Its detection field can be divided into up to 8 independent zones, each with customizable target size, sensitivity, and output settings. This allows the sensor to adapt seamlessly to different risk levels and environments—for example, one zone can be configured to detect people, while another monitors vehicles, or one set as a pre-alarm and another as an immediate alert. The REDSCAN mini-Pro’s precision and flexibility offer coverage and functionality that would normally require multiple sensors.

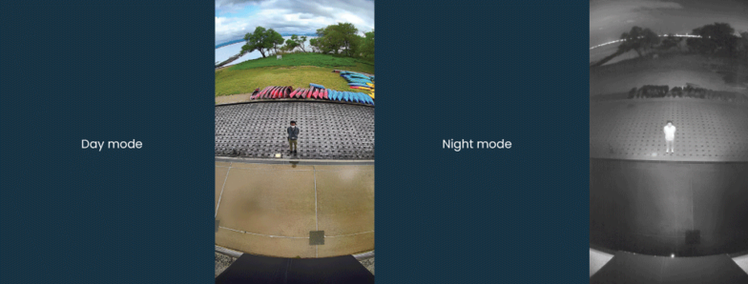

The REDSCAN mini-Pro RLS-2020V also features a built-in IR full HD camera that records alarm events directly on the device, storing logs along with pre- and post-event images or video. This added layer of verification helps security teams clearly see what triggered an alert and refine detection settings with confidence.

Smart Detection in Any Environment

With advanced onboard analytics, the REDSCAN mini-Pro measures the size, speed, and position of moving or loitering objects, tracking them to precise X and Y coordinates. Its LiDAR technology ensures stable performance day or night, unaffected by lighting changes or extreme temperatures. The mini-Pro delivers a high-resolution 0.125-degree detection capability, enabling accurate monitoring even in challenging conditions.

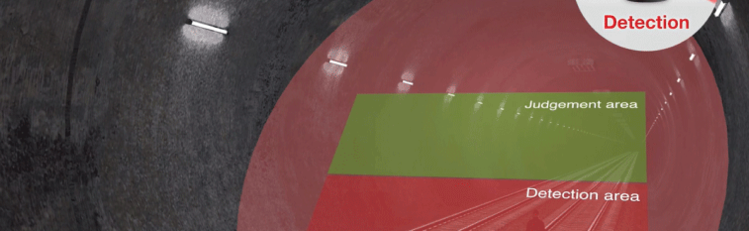

The REDSCAN mini-Pro is designed to maintain reliable detection even in challenging weather, with features that minimize false alarms caused by fog, rain, or snow. Its Auto Area Adjustment function automatically adapts to ground changes such as shifting terrain, snow buildup, or fallen leaves, ensuring consistent performance. Operating in temperatures from -40°F to 140°F, the mini-Pro is engineered for dependable security in virtually any environment.

Seamless Integration and Secure Connectivity

The REDSCAN mini-Pro is fully ONVIF Profile S compliant, enabling seamless alarm transmission to any compatible Video Management System (VMS) or IP network device. The RLS-2020V model also provides an IR full HD video stream to VMS platforms via ONVIF RTSP for enhanced verification. To ensure secure communication, the mini-Pro supports leading network protocols including HTTPS, SNMPv3, and IEEE802.1X, offering dependable interoperability for modern security ecosystems.

Simplified Setup and Adjustment

The REDSCAN mini-Pro is designed with installers in mind, offering versatile mounting options for horizontal, vertical, or angled configurations. Its Multi-Angle Adjustment Shell (M.A.S.S.) makes it easy to fine-tune the detection area without additional brackets. The RLS-2020V model adds convenience with a built-in IR full HD camera, which provides real-time visualization of the detection area and a laser guideline for precise alignment during setup and walk tests.

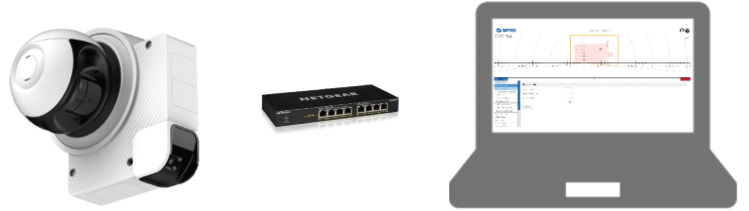

Configuration is handled through an intuitive web browser interface, allowing settings to be adjusted remotely and duplicated across units of the same model for faster deployments. Photos and map images can also be overlaid on the detection area for improved situational awareness, ensuring installation and maintenance remain simple and efficient.

Installation Guide

Applications

Valuable assets, restricted areas, rooftops, skylights, facades, perimeters, gates, corridors, tunnels, and more.

REDSCAN mini-Pro LiDAR Series is ideal for:

Models

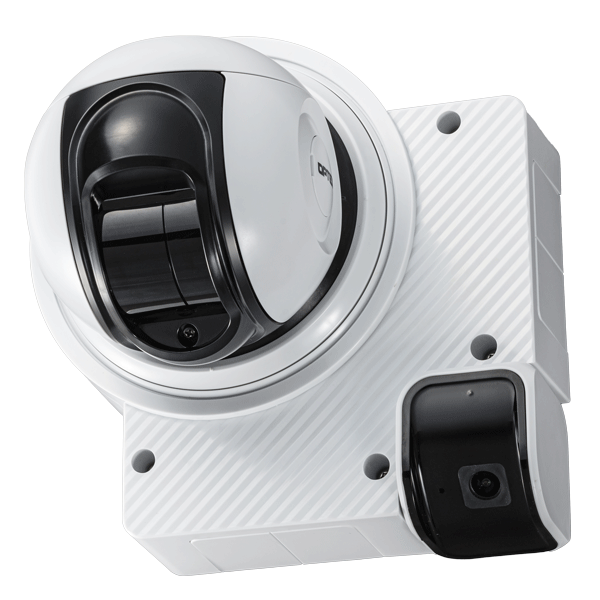

RLS-2020V

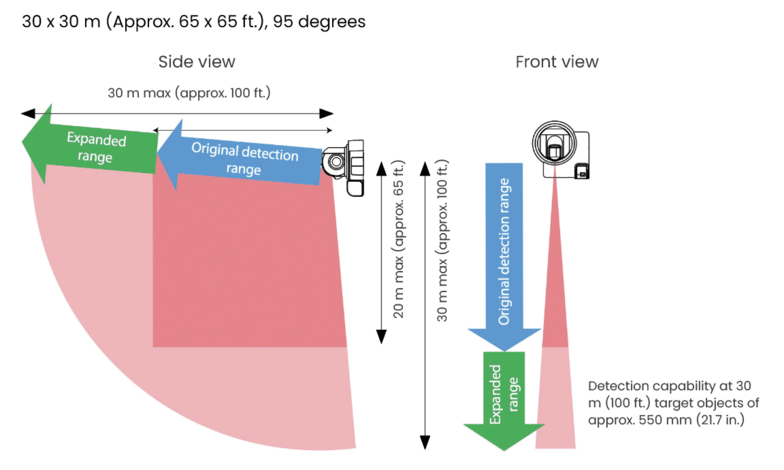

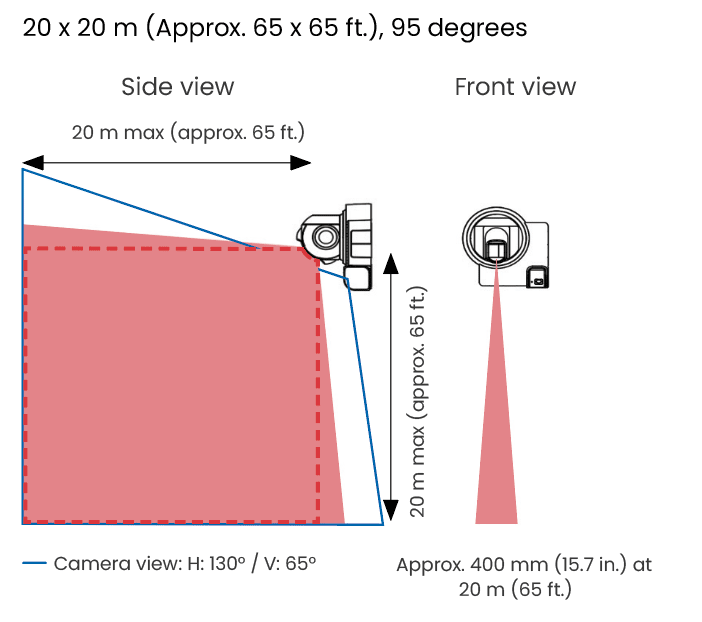

Advanced LiDAR sensor with 65 x 65ft 95° detection, with built-in IR FHD camera for indoor/outdoor applications

- Built-in full HD camera with IR LED

- Vertical or horizontal installation

- Expansion mode up to 100ft, 95° arc detection

- Measure objects' size, speed, and position accurately

RLS-2020A

Advanced LiDAR sensor with 65 x 65ft 95° detection for indoor/outdoor applications

- Vertical or horizontal installation

- Expansion mode up to 100ft, 95° arc detection

- Measure objects' size, speed, and position accurately

- Configure settings via web browser

The REDSCAN mini-Pro LiDARs are ONVIF profile S compliant sensors allowing them to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices.

Optional Accessories

LAC-1

Laser Area Checker for all RLS series.

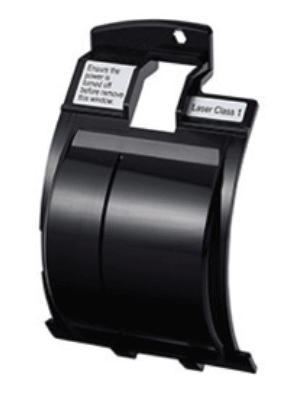

RLS-LW

Replacement Window for RLS-2020V and RLS-2020A

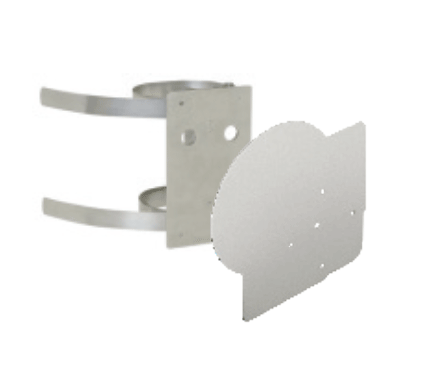

RLS-PB2

Pole-mount Bracket for RLS-2020V and RLS-2020A
