PIR Detectors (SIP Series)
Synthesized Intelligent Passive Infrared
The REDWALL SIP series is a high-reliability outdoor detector that is especially suited for remote and local video monitoring applications. The detector provides three benefits for these applications:

  • Reduction of false alarms
  • Alarm source locate and control
  • Protection from vandalism

​The goal of the REDWALL series detector is to provide a product that can deliver reliable and effective protection while reducing total installation costs. To achieve this, the REDWALL SIP detectors has five innovative sensing technologies features:

  • High-reliability PIR sensor with double conductive shielding
  • Thermo-sensor for detecting environmental ambient temperature
  • Light intensity sensor for detecting ambient brightness
  • Photo-beam sensor for anti-masking
  • Accelerometer for anti-rotation

Click here for more product information, downloads and specifications

Click here for installation guides for Redwall SIP detectors

Click here for Redwall Case Studies (PDF)

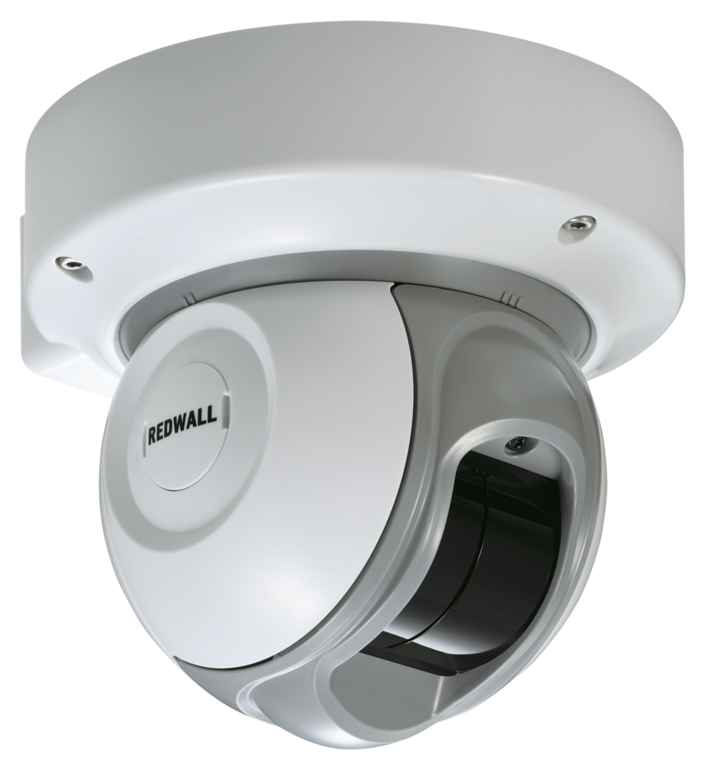

Redscan Laser Scan Detector
​Built-in On-Board Laser Analytics

The Optex Redscan is an innovative laser scan detector product series. It can detect a moving object's size, speed, and distance from the detector and process that information with a unique algorithm, which results in high-reliability detection of people and objects. The detector can also be mounted vertically or horizontally according to the application and site conditions.

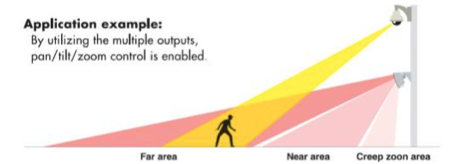

When vertical detection area is selected, Redscan creates a detection area that functions like an invisible wall. You can get 60m (200 ft.) with the RLS3060L series and up to 50m creating an early warning detection area from 30-50m. The RLS2020 series provides 20m (65 ft).  With outputs for remote video applications and programmable detection areas linked with these outputs, Redscan is the ideal detector for controlling network cameras.

When horizontal detection area is selected, Redscan creates a detection area with a radius of 30m(100 ft.) with the RLS3060L (or SH) series or 20m (65ft) with the RLS2020 series. The detection area can be set manually or automatically. If the automatic setting is used, the detector will set the proper detection area even for complicated area shapes.

Redscan is a sophisticated next-generation outdoor detector that streamlines video monitoring and reduces installation costs for system integrators.

Click here for RLS3060 product information, downloads and specifications
Click here for RLS2020 product information, downloads and specifications
Click here for installation guides for the RLS3060 Redscan detector
Click here for Redscan Case Studies (PDF)

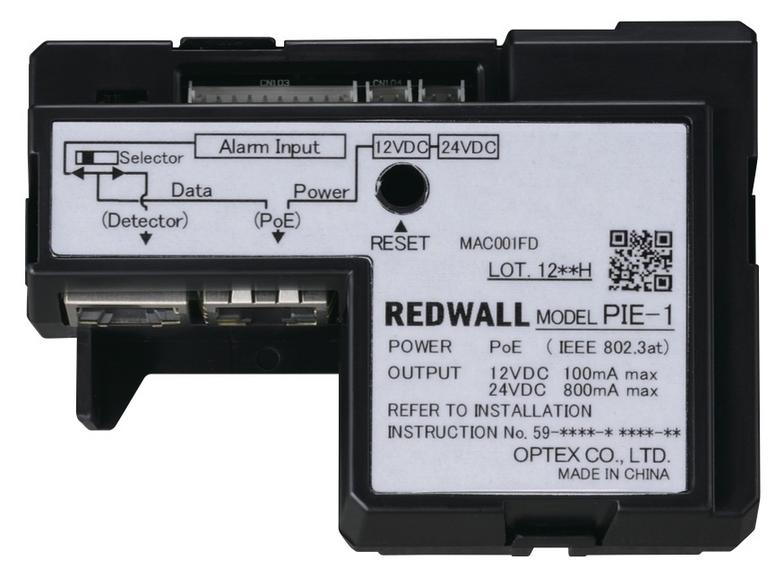

PIE-1 PoE IP Encoder
Optex Gateway to IP Security Networks

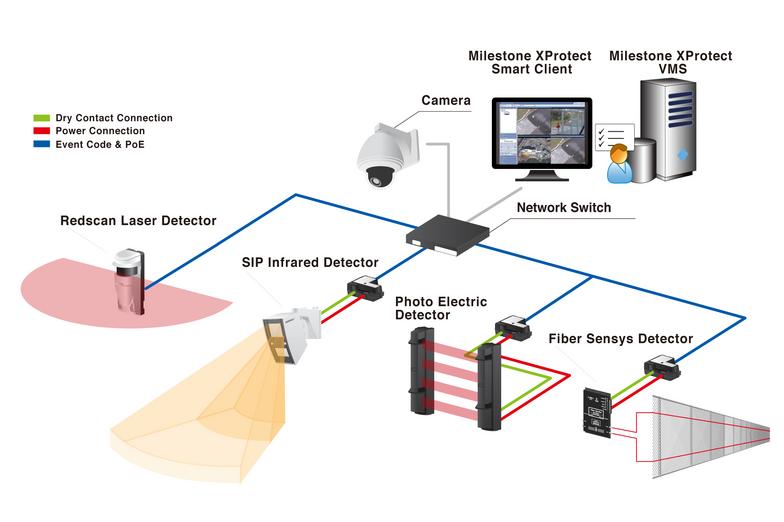

The Optex PoE IP encoder offers extreme flexibility for
any Optex sensor to be easily added to an Milestone-powered securitynetwork. The unit has two RJ45 jacks (one as the network input, one as a pass-through output) and enough wire-lead analog and power inputs to integrate with any Optex sensor. The PIE-1 fits in a standard double-gang box and acts as power-splitter and Redwall Event Command encoder to send the ASCII alarm command(s) back to the network.

Click here to see how you can connect to a Milestone-powered security network

Click here to see how you can connect to a Genetec powered security network

Click here to see product information
Optex IP Sensing Solutions

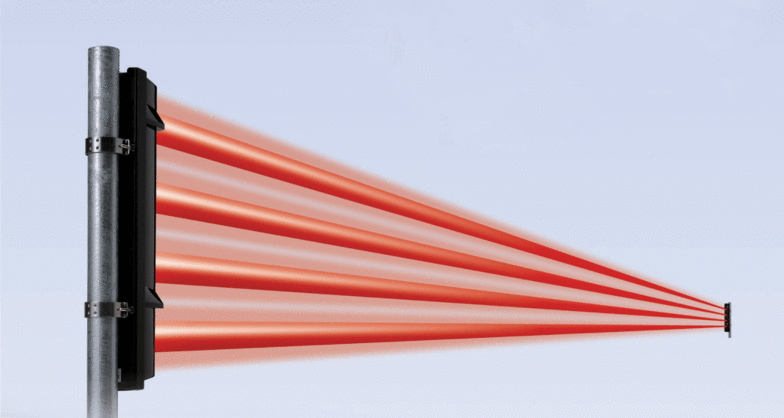

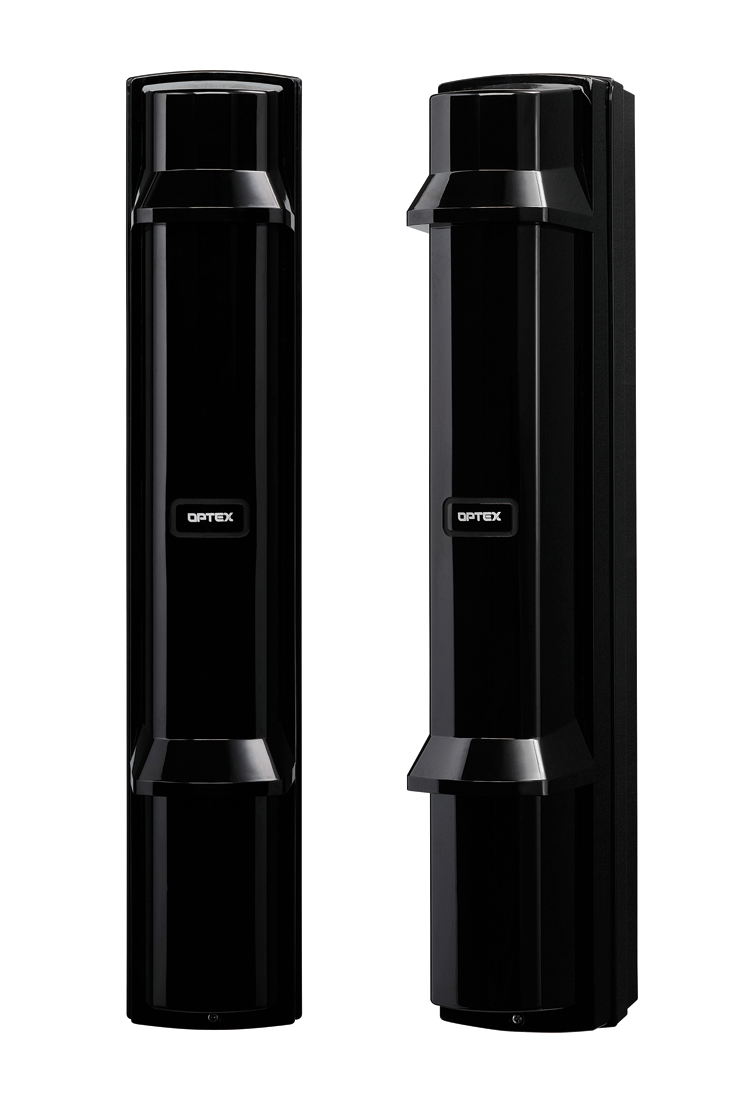

Redbeam Photo Electric Detectors
Active Infrared Trip Wire

Redbeam is a photo beam detector that consists of a pair of transmitters and receiver units for line protection. The transmitter unit constantly emits photo beams to the receiver unit; An alarm signal is generated when an intruder breaks the perimeter line detection area between transmitter and receiver unit.

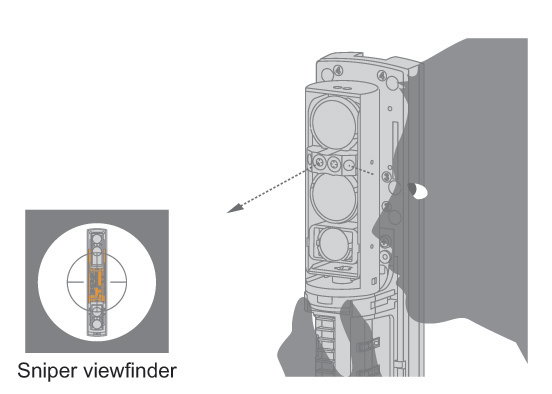

  • Sniper View Finder with 2X magnification
  • IP65 Waterproof structure
  • Quad  beam with aspherical lenses create more sharply defined and precise active infrared beams

Click here for more product information, downloads and specifications​
Click here to download the latest Optex IP Product Brochure

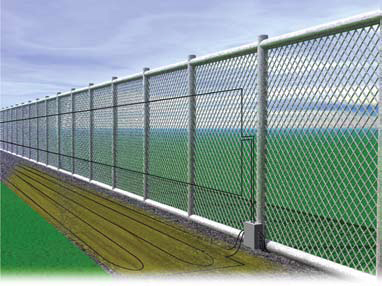

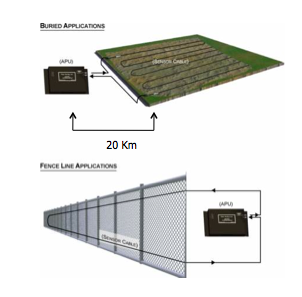

Fiber Optic Fence Sensors
Fiber Sensys is the World Leader in the design and development of Fiber Optic Sensing Technologies for Security Applications. Since 1990, over 12,000 Fiber SenSys Alarm Processor Units (APU’s) have been deployed along with over 4,000,000 meters of fiber-optic sensing cable at the most critical sites around the globe. Backed by the highest rating available by the US Government, Fiber SenSys is a trusted and respected supplier of fiber optic intrusion detection systems.

Perimeter security is no longer just for correctional institutions and military sites; it has become standard protocol for most facilities and organizations in the world. Detecting intruders as early as possible provides maximum protection for your personnel and resources. Whether securing retail, light industrial facilities, utilities and energy plants, petroleum and chemical factories, or transportation centers, Fiber SenSys has a solution for you.

We have applications for:

  Chain Link Fences
  Specialty and Non-Climb Fences
  Walls
  Rooftops
  Razorwire

Go to www.fibersensys.com for more information about sales, products, solutions, white papers, training and support
Click here for corporate and product information
Contact us here
RLS-3060L Series 60m (200 ft.) Vertical Detection Area

RLS-3060SH Series up to 100m (330 ft.).  Vertical Detection Area
RLS-3060L Series 30m radius (100 ft.) Horizontal Detection Area

RLS-3060SH Series 50m radius (165 ft.).  Horizontal Detection with pre-warning area from 30-to-50m area
RLS-2020 Series 20m x 20m (65 x 65 ft.) Vertical Detection Area
RLS-2020 Series 20m x 20m (65 x 65 ft.) Horizontal Detection Area
Redscan RLS2020
Redscan RLS3060
